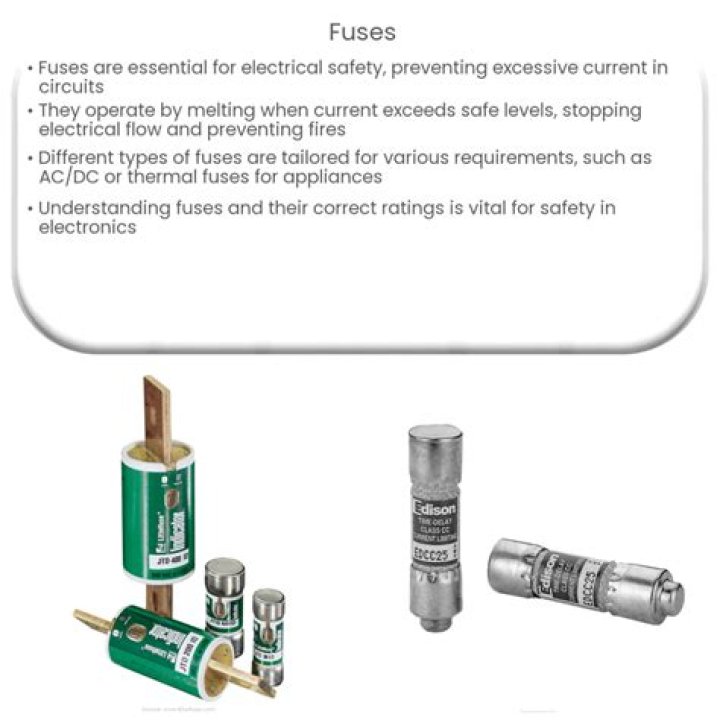

Why is electrical fuse needed?

A fuse(s) is needed in any electrical system (AC or DC). These protection devices react to the amount of heat being produced by electricity passing through wires and/or components. They are used so as to protect wires and components from the extreme heat produced should there be an electrical overload or short circuit.

.

Similarly one may ask, what is the use of electrical fuse at home?

Fuse is a protective device used in electric circuits. To protect electric circuit and equipments- It protects electric circuit and equipments from overcurrent or short circuit current. With the help of fuse electric equipment work efficiently and safely for long life.

Likewise, what is the importance of fuse in electric circuit? A fuse functions as a protector for a circuit by creating an open circuit condition when extreme current is run into. The fuse completes this work by interrupting the current through melting some of its specially designed parts. These electrical components are melted by heat generated due to the excessive current.

Furthermore, why is an electric fuse required in all electrical appliances?

The use of an electric fuse prevents the electric circuit and the appliance from a possible damage by stopping the flow of high electric currents. There are faults in electrical circuits due to which heavy current may flow through the circuit that results in the overheating of live wires.

What are the 3 types of fuses?

The low voltage fuses are divided into five types such as rewirable, cartridge, drop out, striker and switch fuses.

• Image Source. Rewirable Fuses.
• Image Source. Cartridge type Fuses.
• Image Source. D-type Cartridge Fuse.
• Image Source. Link Type Fuse.
• Image Source. Blade and Bolted type Fuses.
• Image Source.
• Image Source.
• Image Source.

Related Question Answers

Where is a fuse placed in an electric circuit?

A fuse is nothing more than a short length of wire designed to melt and separate in the event of excessive current. Fuses are always connected in series with the component(s) to be protected from overcurrent, so that when the fuse blows(opens) it will open the entire circuit and stop current through the component(s).

How do you read a fuse?

Place the other lead on the other end of the fuse. If the reading is between 0 and 5 Ω (Ohms), the fuse is good. A higher reading indicates a bad or degraded fuse. A reading of OL (Over Limit) definitely means a blown fuse.

Which wire is used in fuse?

The material used for making fuse element has a low melting point such as tin, lead, or zinc. A low melting point is, however, available with a high specific resistance metal shown in the table below. The material mainly used for fuse element are tin, lead, silver, copper, zinc, aluminum, and an alloy of lead and tin.

What is electric fuse made up of?

The fuse element is made of zinc, copper, silver, aluminum, or alloys to provide stable and predictable characteristics. The fuse ideally would carry its rated current indefinitely, and melt quickly on a small excess.

Where is a fuse used?

When the element in a fuse receives too much heat it will melt and interrupt the current. Fuses are usually used as a conduit between an electrical power source and an electrical component or a combination of components arranged in an electrical circuit. A fusible link is connected between the fuse terminals.

How many types of fuses are there?

There are two types of HRC Fuses: Blade Type and Bolted Type. Blade Type Fuses are also known as Plug – in Type Fuses. The body of the Blade Type Fuse is generally made up of plastic and the two conducting Blade Type Plates are fixed to the fuse element.

What type of electric fuse is used in individual electrical appliances?

Answer: cartridge fuse is used in electrical appliances like car stereos. Explanation: It consists of two metal caps at the edges of a glass tube having a thin fuse wire sealed inside it.

How are electric fuse rated?

A fuse rating is the current need to blow (break) the fuse. When a fuse has blown it removes electrical power from an electrical circuit. The fuse rating is usually on the side of the fuse. Thefuse rating is usually defined in 'amps' – amps are the unit of measurement of electrical current.

How does fuse wire protect an electric circuit?

The fuse breaks the circuit if a fault in an appliance causes too much current to flow. This protects the wiring and the appliance if something goes wrong. The fuse contains a piece of wire that melts easily. If the current going through the fuse is too great, the wire heats up until it melts and breaks the circuit.

What are the three wires in house wiring?

In 3 phase 208/240 volt circuits the three hot wires are black, red and blue. 3 phase 480 volt circuits are color coded orange, brown and yellow. White and green/bare are as above.

Where are electrical circuits used?

Electrical circuit is the practical medium to transport electrical energy in relatively cheap and practical way. Ligthtings, refrigerators, air-conditionings, TVs, Computers, fans, etc need electrical energy which usually delivered by electrical circuit. Usually electrical wires are made of aluminium, steel and copper.

Which device produces the electric current?

electric generator

What is a fuse and why are they needed?

A fuse is a small, thin conductor designed to melt and separate into two pieces for the purpose of breaking a circuit in the event of excessive current. A circuit breaker is a specially designed switch that automatically opens to interrupt circuit current in the event of an overcurrent condition.

What is MCB in electrical?

A miniature circuit breaker (MCB) automatically switches off electrical circuit during an abnormal condition of the network means in overload condition as well as faulty condition. The fuse may not sense it but the miniature circuit breaker does it in a more reliable way.

Why earth wire is used in domestic circuit?

Answer: we connect the earth wire to metal casing of electrical appliances by using three pin plug. If by chance, live wire touches any metal case parts of appliances then current passes directly to earth. hence earthing is used as safety measure to prevent shock from metal objects.

What is the function of fuse?

The function of a fuse is usually to prevent fire - that's the basic protection a fuse offers - between power supply and appliance there may be a few feet or metres of cable - if a short circuit occurs in the appliance, the cable could easily become overheated (due to excess current) and burn or rupture its insulation.

What are the advantages of fuse?

Advantages of an Electrical Fuse It is the cheapest form of protection, and it does need any maintenance. Its operation is completely automatic and requires less time as compared to circuit breakers. The smaller sizes of fuse element impose a current limiting effect under short-circuit conditions.

What is the function of a circuit breaker?

A circuit breaker is an automatically operated electrical switch designed to protect an electrical circuit from damage caused by excess current from an overload or short circuit. Its basic function is to interrupt current flow after a fault is detected.

What is electric fuse wire?

An electric fuse wire is a wire made up of an alloy of low melting point and having a current rating lower than that of the rating of the appliance.
