Where do you notch joists?

Rules for Notches in Joists

Notches should only be made in the top edge of the joist.
Notches should be no deeper than 0.125 times the depth of the joist.
Notches should be no closer to the structure supporting them than 0.07 times the span of the joist.
The notches should be no further away than 0.25 (¼) times the span.

Also know, how much of a joist can be notched?

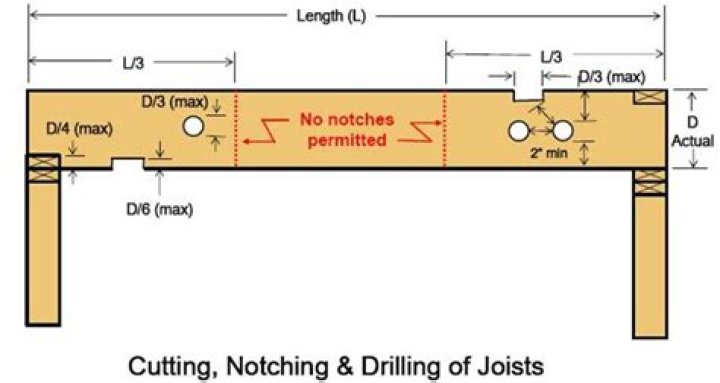

The maximum depth of a notch at the end of a joist (where it rests on a wall or beam) can't exceed one-quarter of the joist depth. Maximum notch depth in the outer third of a joist is one-sixth of the joist depth. Limit the length of notches to one-third of the joist depth. No notching in the middle third of a joist.

One may also ask, where can I drill holes in joists? area in the middle of the 2×10 joist where the hole can go. Although notches aren't allowed in the center third of a joist's length, you can drill holes anywhere along the length of the floor joist in that 5 1⁄4-in. area provided there are no other holes in the joist or notches along its top or bottom.

Likewise, can you notch floor joists for plumbing?

Tradespeople often need to cut notches or holes in floor and ceiling joists to run pipes, ductwork, or wires. Sometimes joists are notched at the end where they bear on a wall or sill. If the cut-outs are too large or in the wrong location, the joist can be weakened and unable to support the load it was designed for.

Is it OK to drill through floor joists?

The hole cannot be larger than one-third the depth of the joist, so the maximum hole size for a 2×12 joist (actual size 1-1/2 x 11-1/4 in.) is 3-3/4 in. You can drill the holes anywhere along the length of the joist (first photo). If you have manufactured I-joists, you can drill holes up to 1-1/2 in.

How long can a joists be without support?

In general terms, joists spaced 16 inches on center can span 1.5 times in feet their depth in inches. A 2x8 up to 12 feet; 2x10 to 15 feet and 2x12 to 18 feet. The larger the deck, the larger the joists.

Can you notch an I joist?

As said earlier, NO you can not notch an I-joist. You can NOT cut/drill/notch the flanges (except to cut to length). There are limits on holes in the web (size, spacing, location).

How can I strengthen my joists?

As incremental parts of a building's structure, joists are not easily replaced. You can, however, strengthen the joists by securing another length of wood to the existing joist, called "sistering," or reduce wobbly floors with block inserts between the joists, called "blocking."

Can you notch a support beam?

You can not notch the middle third of a structural beam or joist. It's never a good idea to cut/notch a beam like this, and you could, and probably should either sister joists or possibly add a fletch plate across the bottom or on either side of the beam.

How do you reinforce notched joists?

You can reinforce a notched joist that has not cracked by cutting two pieces of 3/4-inch plywood as wide as the joist depth and as long as the plywood sheet. Screwing a piece to the joist on each side offers moderate reinforcement. Stronger reinforcement is in order if the joist is sagging or has cracked.

Can you run drain pipe through joists?

Running Drain Lines through Joists In most cases, you can't install a solid run of pipe, which means you must install short pipe segments and connect them in every joist space. Likewise, do not cut the top or bottom chord of an engineered wood I-joist.

How far can you cut into a joist?

For a typical floor joist spanning three metres, this means the notches should be cut only between 210mm and 750mm from the wall. More importantly, the maximum safe depth for a notch is one-eighth the depth of the joist.

How many wires are in a joist hole?

The Answer According to the National Electrical Code, you can have 4 12/2 nonmetallic sheathed cables through a single bored hole that is fire- or draft-stopped using thermal insulation, caulk, or sealing foam, or where proper spacing is not maintained for more that 24 in.

What do floor joists sit on?

Floor joists, spaced on regular intervals, span the areas between supports such as walls, foundations, girders, and beams. Normal spacing is 16 inches “on center" (from center to center), though some floors may have joists on 12-inch or 24-inch centers.

Which regulation covers the notching and drilling of joists?

Notching and drilling of joists should not exceed the limits indicated below: Note if notches on top of joist are limited to the area between 0.1 and 0.2 of span, the maximum notch depth may be increased to 0.15 x joist depth. Keep holes and notches at least 100mm apart horizontally.

Can I cut a ceiling joist?

Yes, you can typically cut through joists, but you must make some additions known as trimmers and headers to the framing as well. Like this Note that the trimmers run the whole length of the joists in place. The ceiling joists will not hold much weight being only 2x4's.

Can toilet waste pipe run under floor?

Soil pipes are generally located on an outside wall and enter the bathroom as close as possible to the toilet location. They can be mounted on the floor, but usually pipes run below the floor in-between the floor joists. Running this pipe from one end of the house to the other simply is not practical.

What are I joists used for?

An engineered wood joist, more commonly known as an I-joist, is a product designed to eliminate problems that occur with conventional wood joists. Invented in 1969, the I-joist is an engineered wood product that has great strength in relation to its size and weight.

How do you attach noggins to joists?

To give this joint even more strength you can fasten a piece of timber such as 75mm * 50mm into the corner and screw through the joist and the ledger with some 100mm long screws. The short pieces of wood that are joining the joists together are called noggins.

Can you drill holes in ceiling joists?

Size: Keep holes in these joists to a maximum of 1.5 inches in diameter (38mm). If you're drilling a hole in the center of the joist then you can drill up to a maximum of 4 inches in diameter (100mm). Position: You can drill holes anywhere between the flanges of the I-Joist.

How do you run wires through floor joists?

To run cable through a floor that contains a cross joist, cut a hole in the cross joist in the cavity closest to the cable`s entry point. Then, run the cable through the hole in the cross joist and through 1/2-inch holes in each joist between the entry point and the communications outlet.
