What basic concept is used in a digital meter to calculate the circuit?

Digital meters use Ohm's law to measure and display the circuit characteristics. This can be done with ease because there are only three variables in Ohm's law: Where is voltage, is current, and is resistance.

.

Similarly one may ask, what meter uses its own power?

ohmmeter

Also, how does digital meter work? Rather than dials, a digital meter has an electronic display that you or a service person can read manually on the face of the meter, or the signal can be sent to the utility company via a high-frequency signal that is transmitted back to the utility company on the electric service wires.

Consequently, what are two types of ammeters?

The following are the types of an ammeter regarding construction. Permanent moving coil ammeter. Moving iron ammeter. Electro-dynamometer ammeter.

What are the three most important things a multimeter can measure?

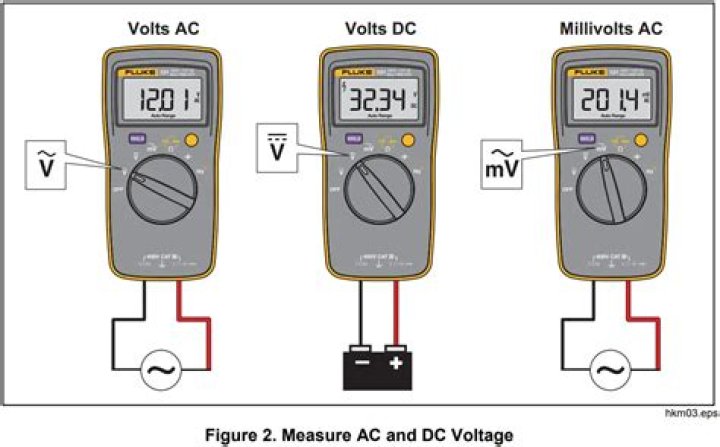

Contemporary multimeters can measure many values. The most common are: Voltage, alternating and direct, in volts. Current, alternating and direct, in amperes.

Related Question Answers

How do you measure how much electricity an appliance uses?

How to calculate my energy consumption

1. Calculate Watt-hours Per Day. Device Wattage (watts) x Hours Used Per Day = Watt-hours (Wh) per Day.
2. Convert Watt-Hours to Kilowatts. Device Usage (Wh) / 1000 (Wh/kWh) = Device Usage in kWh.
3. Find Your Usage Over a Month.

How many types of meters are there?

three

Why are ammeters connected in series?

An ammeter is connected in series with the circuit because the purpose of the ammeter is to measure the current through the circuit. Since the ammeter is a low impedance device, connecting it in parallel with the circuit would cause a short circuit, damaging the ammeter and/or the circuit.

What is the basic accuracy of most analog and digital meters?

The most accurate reading for an analog meter is a pointer position between 2/3 of full scale and full scale. Typically, dc voltage measurements use the full count capability of the ADC, since signal conditioning is rather straight forward: it uses resistive dividers and filters.

How do you read a meter reading?

To read correctly:

1. Read the dials from left to right.
2. If the pointer is between two numbers, always take the lower number.
3. If the pointer falls between 9 and 0, write down 9.
4. Ignore red dials, ones marked '100 per rev' and the largest dial.

Can I install my own electric meter?

You can legally fit your own meter for gas and electricity. Also electricity act 1989 and gas act 1986. So when they come to change your meter to pre-payment , you can arrange for your meter to be fitted by a competant person of your choice.So you are left with no contract with any supplier and their meter is gone.

How is electric meter calculated?

You'll then take this number and multiply it by the kWh rate your power company charges and add any fixed fees.

1. Current meter reading – Meter reading reported from last month's bill = Total kWh used since last reading.
2. Total kWh used since last reading x Charge per kWh = Total energy charge.

How do you measure current?

To measure current, you must connect the two leads of the ammeter in the circuit so that the current flows through the ammeter. In other words, the ammeter must become a part of the circuit itself. The only way to measure the current flowing through a simple circuit is to insert your ammeter into the circuit.

Which instrument is used to measure both AC and DC?

The moving iron vane movement (Figure 10) can be used to measure both AC current and voltage. By changing the meter scale calibration, the movement can be used to measure DC current and voltage. The moving iron vane meter operates on the principle of magnetic repulsion between like poles.

What is an ammeter?

An ammeter (from Ampere Meter) is a measuring instrument used to measure the current in a circuit. Electric currents are measured in amperes (A), hence the name. Instruments used to measure smaller currents, in the milliampere or microampere range, are designated as milliammeters or microammeters.

What is a series circuit?

A series circuit is one that has more than one resistor, but only one path through which the electricity (electrons) flows. All the components in a series circuit are connected end-to-end. A resistor in a circuit is anything that uses some of the power from the cell. In the example below, the resistors are the bulbs.

Where is an ammeter used?

Most well known and common use of ammeter is naturally direct measurement of current, when connected in a circuit or branch of a circuit. Ammeter can be used for measurement of much higher current than its rating, by use of shunt resistors, or by use of current transformers.

What is the principle of ammeter?

The main principle of Ammeter is that it must have a very low resistance and also inductive reactance. It has very low impedance because it must have very low amount of voltage drop across it and must be connected in series connection because current is same in the series circuit.

What is the difference between AC and DC ammeter?

A DC ammeter is thus sensitive to which way round it is connected; most are marked with a positive terminal. A moving coil meter indicates the average (mean) of a varying current through it, which is zero for AC. For this reason moving-coil meters are only usable directly for DC, not AC.

What is a digital meter for electricity?

Digital meters, sometimes called “smart meters” or “advanced meters,” are devices that automatically record electric and water use, then electronically report that information to the utility company at regular intervals. These meters provide secure data that can show peak usage and isolate outages.

How long is a kilowatt hour in real time?

A kilowatt-hour is 1,000 watts of electricity used for one hour.

Will the power company know if I pull my meter?

It takes special training and protective equipment to safely pull a meter. And if by the term "smart meter" you mean that it is monitored and read remotely then yes, the power company will know within minutes of you pulling it. Yes they will know if you remove the meter and tamper with the lock.

What is a digital tape measure?

Laser tape measures are alternatives to traditional metal tape measures; they're used to calculate lengths, widths and heights of up to about 650 feet (198 meters). They're generally considered accurate to within an eighth of an inch (3 millimeters) when measuring a distance of up to 300 feet (91.5 meters).

Can digital electric meters be hacked?

For the folks who have been defrauding their utility and stealing their electricity by hacking traditional electric meters, the new digital hardware will not be welcome. (Note: Greentech Media does not endorse actually hacking your electric meter, or any illegal activity, for that matter.)
