How does a thermistor work in a motor?

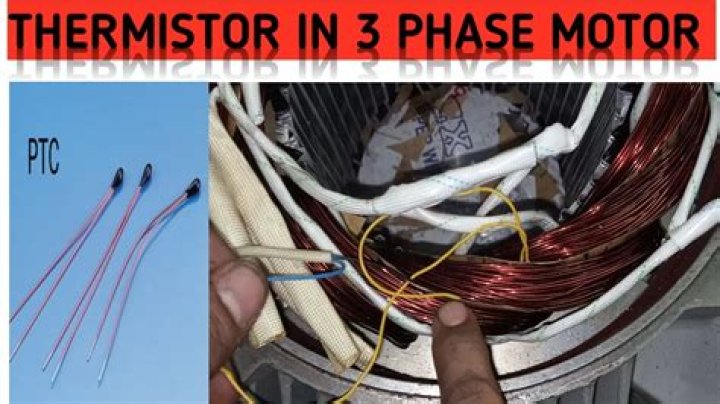

Thermistor embedded in the motor winding to sense motor temperature. Whenever motor temperature exceeds preset temperature set in the relay, motor is shutdown automatically. For less critical application it is used to trigger over temperature alarm with indication.

.

Simply so, what is the use of thermistor in motor?

Thermistor is a small non-linear resistance sensors, which can be embedded within the insulation of a motor winding, to provide a close thermal association with the winding. It's made from a metal oxide or semiconductor material.

Likewise, what is the main function of a thermistor? Thermistors are thermally sensitive resistors whose prime function is to exhibit a large, predictable and precise change in electrical resistance when subjected to a corresponding change in body temperature.

Similarly, you may ask, how does a thermistor relay work?

DTA04 is a motor thermistor monitoring relay. Through the motor internal PTC or PTCs the DTA detects when one or more motor windings are exceeding the maximum operating winding temperature. The temperature triggering threshold is detemined by the PTC Type.

Where is thermistor placed?

For best stability, the thermistor needs to be placed as close to the thermoelectric or resistive heater as possible.

Related Question Answers

What are the applications of a thermistor?

Different Uses for Thermistors. A thermistor is a specific type of resistor that uses sensors to help regulate cold and heat. They can do more then simply regulate temperature. They are also used for voltage regulation, volume control, time delays, and circuit protection.

How do I check my PTC thermistor?

Testing a PTC thermistor follows all the same steps as a NTC thermistor. First check, with an ohmmeter, the thermistor without any heat applied. With a PTC thermistor at room temperature or below, the thermistor should measure a very low resistance. Now apply heat, just like before, to the thermistor's body.

What is the motor protection?

Motor protection and control Motor protection is used to prevent damage to the electrical motor, such as internal faults in the motor. Also external conditions when connecting to the power grid or during use have to be detected and abnormal conditions must be prevented.

How accurate is a thermistor?

Since Thermistors experience such a large change in resistance per degrees Celsius, the smallest change in temperature is accurate with a quick response time. This makes their effective operating range between -50°C to 250 °C for standard thermistors.

How is motor temperature measured?

The temperature rise of large motors can be measured by the resistance method or by detectors embedded in the windings as indicated in Tables 2 and 3. To find the temperature rise using the resistance method, measure the lead-to-lead resistance of the line leads with the motor cold—i.e., at room (ambient) temperature.

What is thermistor cable?

Hi GameRunner. No, the thermistor cables are for monitoring surface temps only, it's not like a pwm cable that can control fans with temperature. If your side fan is connected to a chassis fan header you can control it in PWM mode or with voltage in DC mode depending on your fan and which header it's connected to.

What happens if a thermistor fails?

When a thermistor is failing, it'll display incorrect temperatures, or you'll see impossible temperature fluctuations. They measure temperatures and send resistance signals to the AC control module, allowing the system to automatically adjust so the cabin remains at the temperature you set.

Does a thermistor have continuity?

Thermistors do not have continuity, they show resistance. You should read around 10k Ohms at room temperature.

What causes a thermistor to fail?

The cause of such failures are usually due to mechanical separation between the resistor element and the lead material, caused by handling damage, excessive heat, thermal mismatch, etc. The second most common failure mode is drift in resistance value as the thermistor ages, or parameter change.

How many ohms should a thermistor read?

For example, if the specified resistance at 25°C for a thermistor with 10% tolerance is 10,000 ohms then the measured resistance at that temperature can range from 9,000 ohms to 11000 ohms. A value that represents the relationship between the resistance and temperature over a specified temperature range.

Does a thermistor have polarity?

Do thermistors have a polarity like capacitors and diodes? No, they are resistive and have no polarity. they are available with vastly different characteristics other than a resistance marked (usually the 25C resistance).

What is a thermistor sensor?

A thermistor is a type of resistor whose resistance is dependent on temperature, more so than in standard resistors. The word is a combination of thermal and resistor. An NTC is commonly used as a temperature sensor, or in series with a circuit as an inrush current limiter.

What is a start thermistor?

Start Thermistors. Start thermistors are used to provide additional starting torque for PSC compressors. The start thermistor is a temperature sensitive device whose electrical resistance changes as a result o f a change in temperature.

Can you bypass a thermistor?

If the thermistor is bad, can you bypass it by putting the two wires that go to it together (securely) and bypassing it? No, if the thermistor is bad, you can not bypass it. It must be replaced.

What is the symbol for a thermistor?

The thermistor is recognised within circuits by its own circuit symbol. The thermistor circuit symbol uses the standard resistor rectangle as its basis and then has a diagonal line through it which has a small vertical section. The circuit symbol shown above is the most widely used.

Does thermistor obey Ohm's law?

Many electrical devices have I-V characteristics that vary in a non linear fashion. Such devices are termed non-linear and do not obey Ohm's law. Examples include filament lamps, diodes and thermistors. A thermistor is a resistor whose resistance varies with temperature.

What does a thermistor measure?

A thermistor is a thermal resistor - a resistor that changes its resistance with temperature. Technically, all resistors are thermistors - their resistance changes slightly with temperature - but the change is usually very very small and difficult to measure.

What is the difference between thermistor and thermocouple?

A thermistor is a temperature-sensitive resistor, whilst a thermocouple generates a voltage proportional to the temperature. Thermocouples can work at much higher temperatures than thermistors. They are commonly used for temperature control in heating systems.
