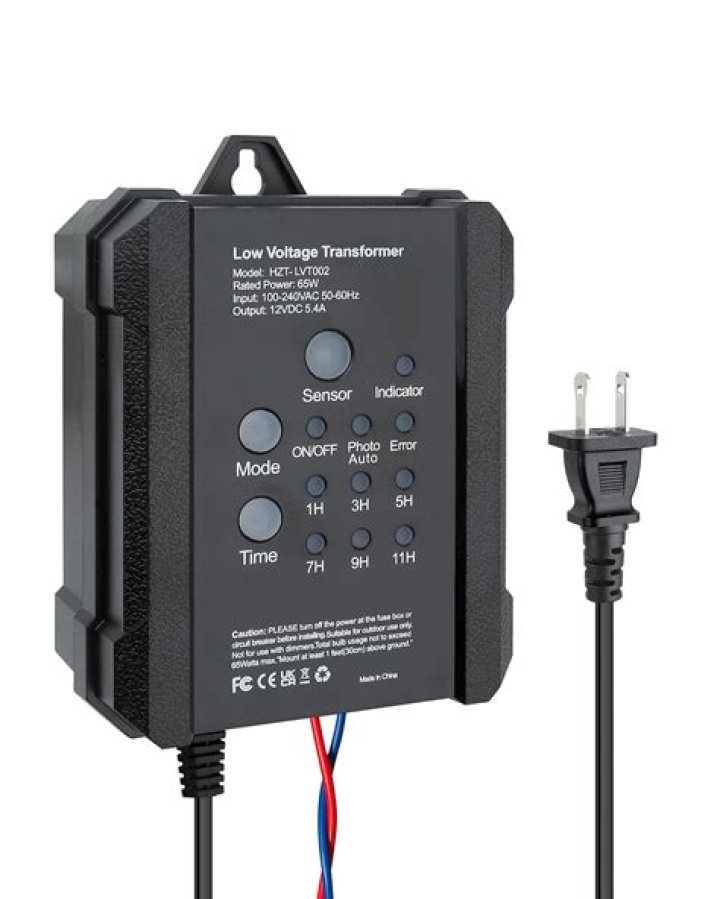

How do you wire a low voltage lighting transformer?

Attach the wire to each light fixture; many low voltage light fixtures use quick connectors to make this process simple. Then, attach the wire to the transformer's terminal screws. Before plugging the transformer in, dig a 3-inch (7.5 cm) deep trench along the wire's length and bury it in the ground.

.

Then, how many lights can you put on a low voltage transformer?

If you want to connect ten landscape lights to a magnetic transformer, and the lights use 30 watts each, you would need a 375 watt transformer. (10 lights X 30 watts = 300 watts, and 300 is 80% of 375).

Likewise, how do you fix a low voltage transformer? How to Troubleshoot a Low-Voltage Transformer

1. Identify the transformer's terminals, using its label as a guide.
2. Turn a multimeter to its VAC function.
3. Test the transformer's input voltage with the multimeter, using the transformer's label as a terminal guide.
4. Test the transformer's output voltage with the multimeter.
5. Disconnect the electricity to the transformer.

Subsequently, one may also ask, what gauge wire is best for low voltage lighting?

A lower number means thicker wire and greater capacity to carry the power current for longer distances. Common wires for landscape lighting are 10-, 12-, 14-, or 16-gauge wires. We recommend 12-gauge or 10-gauge wire for long distances. This is to prevent voltage drop.

How many low voltage lights are allowed on a circuit?

A good rule of thumb is to put no more than 100 watts of lighting on one line. If you want to put ten 20-watt lights on a circuit, make a tee connection with five lights on one line and five on the other. You can also minimize voltage drop by using a thicker gauge wire.

Related Question Answers

What is the best low voltage transformer?

Our Top 10 Best Low Voltage Transformers Reviews

• AGPTEK 60-Watt Transformer.
• Best Pro Lighting 300W Step-Down Voltage Converter.
• Lightkiwi Multi-Tap Landscape Lighting Transformer.
• Malibu 8100-9045-01 45Watt Power Pack Low Voltage Transformer.
• GOODSMANN 9920-0300-01 300Watt Low Voltage Transformer.

Can you run low voltage wire with High Voltage?

As long as the insulation on the low voltage wire is rated the same as the high voltage wire, you are ok. That's the key there.

Can you put a switch on low voltage lighting?

yes you can put a regular switch on a low voltage wire.

Is there a positive and negative on low voltage wire?

Low voltage wire does not have polarity, it does not matter which of the two wire connects to the Common Terminal and which to the Voltage Terminal, as long as one wire goes to each. It is easier to see and insert the wires into their terminals when the transformer is lying on the ground.

How do I know if my low voltage transformer is bad?

Look for a reading of somewhere between one and about 10 ohms. If any winding reads higher than 10 ohms you have probably found a bad transformer. Unless you didn't get a good connection to the coil leads with your test leads. Always check at least 3 times before you draw a conclusion.

Can I plug a low voltage transformer into an extension cord?

One warning though to be observed is to never use an extension cord between the transformer and the electrical outlet. Always plug the transformer directly into the power outlet. As you can see, low voltage outdoor lighting is not all that hard to install or maintain.

What is the common wire in low voltage?

A common wire usually refers to control circuits such as the low voltage circuits for a lawn irrigation system that run out to each electrically operated valve. In these arrangements, one common wire loops from valve to valve. Each valve also gets its own power wire to turn the valve on and off.

How deep do you bury low voltage wire?

No conduit is needed. You can bury the wire a few inches underground, or lay it on top of the ground and hide it with vegetation or mulch, McGowan says. "Burying the wire three inches would do fine as long as it's covered so people won't trip on it," McGowan says.

Can I run low voltage wire through wall?

Drill a new hole, and keep the new low-voltage wire several inches away from electrical cables. It's OK to run low-voltage wires perpendicular to cables, and it's also OK to run low-voltage wires next to electrical wires that are encased in conduit or metal sheathing.

What is a low voltage transformer used for?

Low Voltage Transformers Low voltage transformers are power transformers that are used to change the voltage capacity of a low-voltage electrical transmission line. Typically, electronic low voltage transformers convert 120 volts into 12 volts or 24 volts.

Do I need a special transformer for LED lights?

All LED bulbs require a 'driver' (a special type of transformer) to work properly. Mains voltage LEDs (such as GU10 and B22 bulbs) have the driver built in to the bulb. If you are replacing existing incandescent 12V bulbs you will need to replace the transformer with a special LED driver.

Are all LED lights low voltage?

An LED light will produce more illumination than a 50-watt low voltage bulb. While low voltage lighting is more energy efficient than standard 120-volt lighting, it doesn't beat out LED. LEDs use about 12% of the energy.

How many watts transformer do I need?

Example: If your appliance consumes 80 Watts then you need a AC-100 transformer (100 Watts capacity) or higher. If you want to operate 2 appliances on one transformer. One of them consumes 300 Watts and the other 130 Watts then you would need a AC-500 (500 Watts capacity) or higher.

Why do you need a transformer for lights?

A transformer can convert the 120v electrical currently supplied from your house down to the 12v needed for each low voltage landscape lighting fixtures in your lawn! The benefit to having low voltage landscape lighting is two fold. First, they consume far less electricity than a “hard wire” 120v fixture.

Can low voltage landscape lighting cause a fire?

Even though landscape lights are low voltage, they can still produce enough heat to ignite mulch if enough air space is not provided around the lights to dissipate the heat. If that air space is filled with leaf debris and mulch, it can ignite.

What happens if you overload a low voltage transformer?

The overloaded transformer out put voltage would drop considerbaly. The voltage in your domestic plug would also be low. If you are using this plug to operate some device in your Home it may damage the device due to more current unless it is protected by Circuit breaker in the distribution box of your house.

Can you use LED bulbs in low voltage lighting?

If they are low voltage (pins) it's a bit more complicated. They will have a transformer either in the ceiling or light fitting. Some LED bulbs, like the Philips Master LED range, have in-built circuitry that can deal with most (but not all) transformers, so you don't have to change them.

How long do low voltage transformers last?

about 15 to 20 years

Does polarity matter in low voltage lighting?

A: There is no polarity in the wires or cable unless you loop it to the transformer which is not necessary. As the load decreases, the output voltage of the transformer increases. Therefore, the life of low voltage lamps will be shortened unless the transformer is carrying close to its rated capacity.
