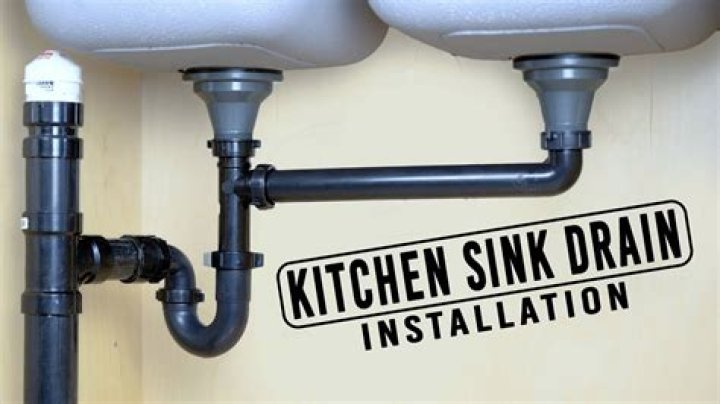

How do you hook up a kitchen sink drain?

Installation Process: Make a rope of plumber's putty and push it in the underside of the sink basket. Drop the sink basket with plumber's putty into the bottom of the sink. Depress the sink basket into the bottom of the sink. Push it down hard so that the putty gushes out the sides of the basket.

.

In this way, do I need plumbers putty for sink drain?

Apply Plumber's Putty The putty will help the upper part of the drain assembly seal against the sink drain opening. If you do not have plumber's putty or cannot use it on your type of sink, then you can use silicone or even the foam or rubber gasket that comes with some pop-up assemblies.

One may also ask, what size is kitchen sink drain pipe? Kitchen drain pipes have a minimum size of 1 1/2 inches but are sometimes installed with pipe sizes of 2 inches. This size is the diameter of the pipe. The size of the drain pipes for kitchen sinks, and all fixtures inside a house, are governed by local or state plumbing codes.

Beside this, how does kitchen sink plumbing work?

A sink drains by way of several components. Kitchen sinks have a strainer fitted into a strainer body that's inserted down through the sink hole and sealed to the sink with a bead of plumber's putty. Beneath the sink, the strainer body connects to the drain's tailpiece and the rest of the drain plumbing.

What is the rough in height for kitchen sink drains?

between 18 and 20 inches

Related Question Answers

Does AP Trap have to be directly under the drain?

The "P" trap SHOULD be directly under the drain, but no more than a few inches off center of it, if conditions require it.

Does a kitchen sink need a vent?

Every sink needs a sink vent. A plumbing fixture like a sink can not function properly without a sink vent. A sink needs a vent because the pressure put on the drain pipe when water flows down the drain pipe needs to equalize. The air needs to escape the drain pipe in order for the sink to vent.

How do you run a drain pipe?

How to Run Drain and Vent Lines

1. Drain and vent lines must be positioned precisely, so you should install them before the supply pipes.
2. If you must run drainpipes across a floor, carefully calculate the amount of vertical space available; you must slope the drainpipe at 1/8 to 1/4 inch drop per foot.

When should you not use plumbers putty?

Plumbers putty is great in most situations. But you should not use it in places where you need adhesive strength. Plus it is not recommended to use in exposed areas needing a watertight seal.

Is it better to use silicone or plumbers putty?

Why Use Plumber's Putty Plumber's putty is one of the basics tools in a plumber's tool bag. Also, silicone is not as easy you work with and is not as dense as plumber's putty, so it's not as good at filling wide gaps, and plumbers don't need time to dry just like caulk does.

How soon can you use sink after plumbers putty?

You need to be patient after applying the plumber putty at any fixture because it takes considerable time to dry. In most of the cases, it takes several hours to dry completely. If you apply it at the base of a faucet to stop the leakage of water, you have to wait for several hours before it dries out quickly.

What can I substitute for plumbers putty?

• Oatey 25605 Hercules 6-Ounce White Tube Plumber's Caulk. The first plumber putty alternative up for review is the Oatey 25605 Hercules 6-Ounce White Tube Plumber's Caulk.
• The Loctite 1716864 Tube Plumber and Marine Adhesive.
• LDR 502 7200 Tub Caulk.

Can you use too much plumbers putty?

It is normal for excess putty to ooze out when you tighten the fixture. How much depends on "how too much you applied to the basket strainer assembly. If you apply way too much and do not get it tight hot water will wash it out. If you apply the right amount and tighten it enough it won't wash out in 20 years.

Can I use silicone sealant instead of plumbers putty?

Plumber's putty is one of the basics tools in a plumber's tool bag. Also, silicone is not as easy you work with and is not as dense as plumber's putty, so it's not as good at filling wide gaps, and plumbers don't need time to dry just like caulk does.

Where do you put plumbers putty on a sink?

Roll plumber's putty between your hands into a rope the size of a pencil and wrap it around the lip of the kitchen sink drain opening. Press the kitchen sink strainer firmly down into the putty, add the rubber gasket, friction ring and locknut under the sink, and retighten the locknut.

Will plumbers putty stop a leak?

Can Plumber's Putty Stop a Leak? Plumber's putty may only be used to prevent or stop leaks in specific areas. It shouldn't be used interchangeably with other products such as caulk or tape.

Do I need plumbers putty with a rubber gasket?

Yes, and you should have been supplied a rubber gasket as well. It's just a surface provided for the rubber gasket to rest on. Both paper gasket and rubber gasket are bottom-side-of-sink-pan placements. The plumbers' putty is for top-side under and around the bezel flange.

Can two sinks share a trap?

Speaking from personal experience, only use one trap in a dual sink bathroom. With two traps, you can get air pockets blocking one or the other's drain. Normally, these double tees are used for adjoining bathrooms, so you can have a sink on each side of the wall, and share the same stack.

How do you plumb a double bowl kitchen sink with disposal?

If you have a double sink, the best way to plumb a disposal is to run its discharge tube directly to a tee below the opposite sink. The tube must drop about 1/4 in. in order to drain properly.

Does a double sink need two traps?

Speaking from personal experience, only use one trap in a dual sink bathroom. With two traps, you can get air pockets blocking one or the other's drain. Normally, these double tees are used for adjoining bathrooms, so you can have a sink on each side of the wall, and share the same stack.

Where does the water from the kitchen sink go?

In cities and towns, and suburban areas with water and sewer systems, water that goes down the sink goes into the sewer, and eventually to a water treatment plant, in most cases, where it is at least partially cleaned up before being dumped into a river or lake.

Does a kitchen sink need a trap?

Beneath a kitchen or bathroom sink drain is a pipe with a sharp bend in it. You must have a p-trap installed under your sink if you want your home to pass inspection in many places, where the building code requires them. Even if they are not required, you should understand the practical purpose for installing a p-trap.

What is pipe under sink called?

An S-shaped trap is also known as an S-bend. It is also referred to as a sink trap because it is installed under most sinks. Because of its shape, the trap retains some water after the fixture's use. This water creates an air seal that prevents sewer gas from passing from the drain pipes back into the building.

Why is an S trap illegal?

The purpose of a trap is to prevent sewer gases, and possibly vermin, from coming in to the home. Back to “S” traps – The reason “S” traps aren't allowed is because they have the potential to suck, or 'siphon', water out of the trap as the water flows down the drain.
